Waterproof
Energy Efficient

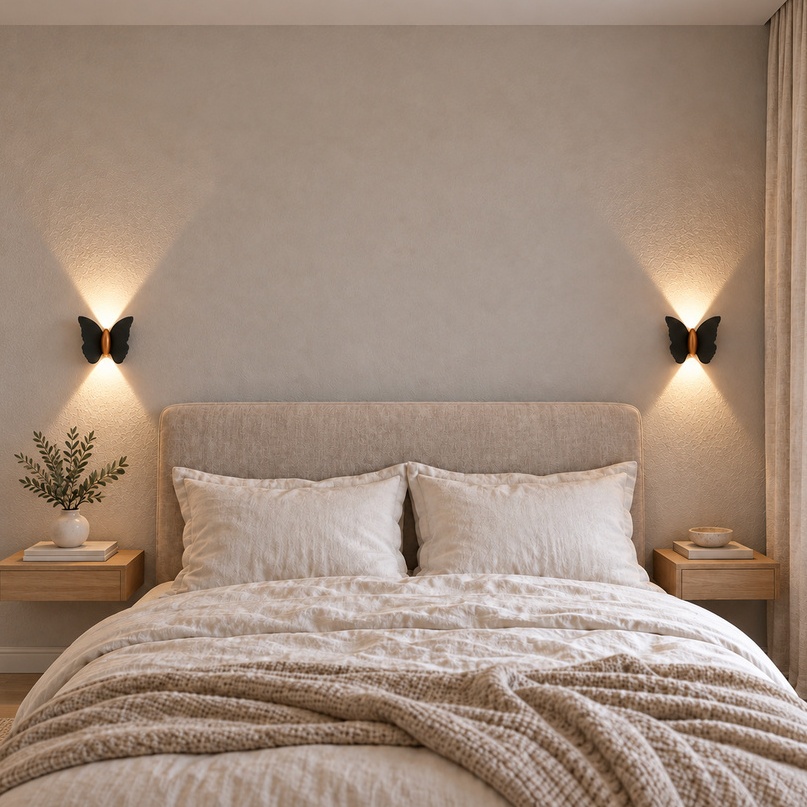

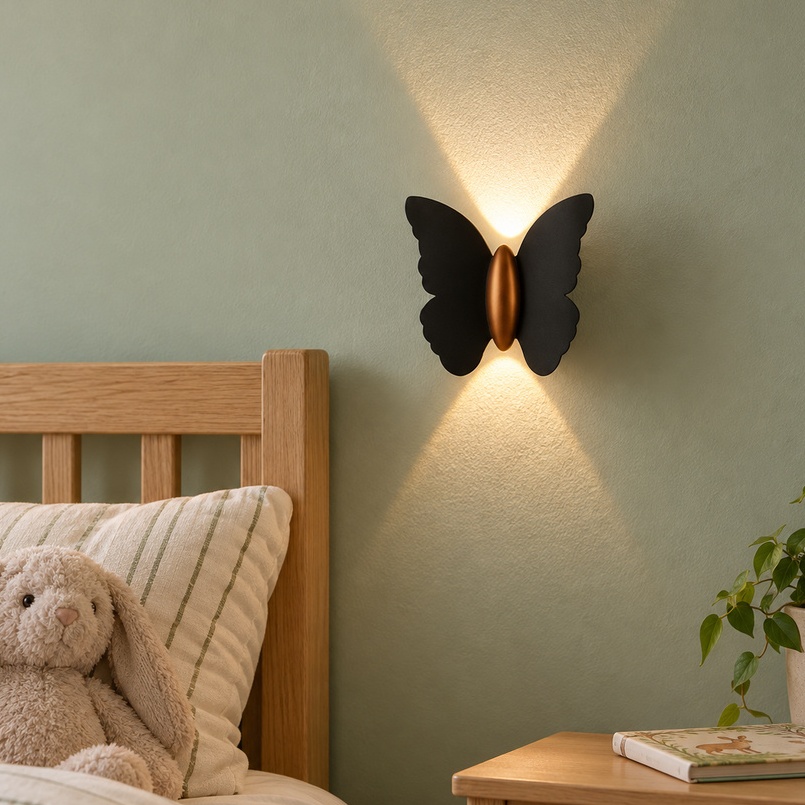

Integrated LightA beautifully designed exterior wall light in a black finish with golden touches. This model has a 3D butterfly shape and allows light to escape from the top and bottom. It is IP65 rated making it ideal for lighting any outdoor space.
| Specifications |
|---|
|
Style |
Modern |
|
Body Colour |
Black |
|
Fixture Material |
Aluminium |
|
Diffuser Material |
Tempered glass |
|
Light Source |
LED |
|
Integrated Light |
Yes |
|
Lamp Power(W) |
6W |
|
Emitting Light Colour |
Warm White (3000K) |
|
Lumens |
540 |
|
Beam Angle |
140° |
|
CRI |
90 |
|
Illumination Area |
5sqm-15sqm |
|
Support Dimmer |
No |
|
IP Rating |
IP65 |
|
Voltage |
AC85-265V |
|
Body Dimensions |
15cm width * 15.5cm height * 7.5cm depth |
|
Wall Rose Dimensions |
8.5cm width * 6cm height |
|
Weight |
336g |
|
Assembly Required |
No |
|
CE & ROHS Certified |
Yes |
Essential steps required when installing an outdoor wall light
All of our outdoor wall lights are waterproof by design. To ensure that any outdoor fixture remains waterproof once installed, proper installation must be practiced, so it is important to show these additional installation steps to your installer. If the fixture is to be installed indoors, these additional steps are not required.
Firstly, depending on the design, if the fixture comes with a rubber ring (or gasket), it is important that this ring is installed and installed correctly as this prevents any rain water flowing on your wall from entering the fixture at the edge of the back-plate of your fixture.
Finally, once installation is complete, it is important to apply sealer at the top of the fixture between the wall and the fixture. This prevents any water from seeping either into the fixture from the hole where the cables are inserted or into your electrical system from the hole in the wall where the cables are protruding.
