Waterproof
Energy Efficient
Integrated Light

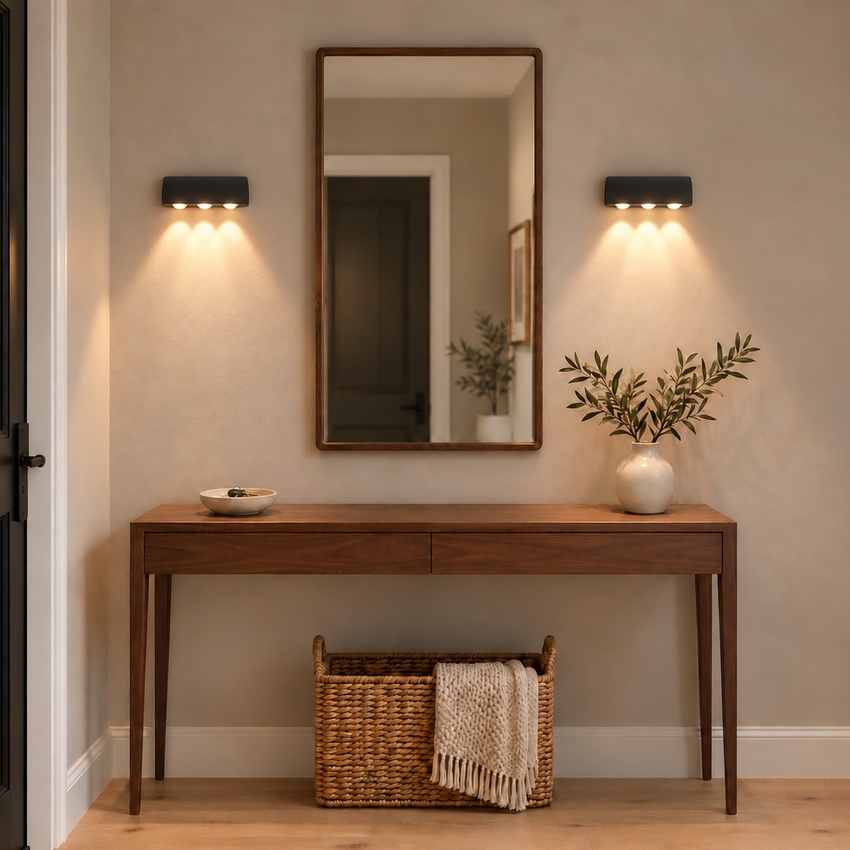

Reversible MountingThis waterproof outdoor wall fitting has a black or white finish. Mounted flush to the wall, and featuring a unique shape design, this modern and discreet wall fitting will illuminate your outdoor space thanks to its energy-efficient 3W LED light.
| Specifications |
|---|
|
Style |
Modern |
|
Body Colour |
BlackWhite |
|
Fixture Material |
Aluminium |
|
Diffuser Material |
Tempered glass |
|
Light Source |
LED |
|
Integrated Light |
Yes |
|
Lamp Power(W) |
3W |
|
Emitting Light Colour |
Warm White (3000K) Natural White (4000k) |
|
Lumens |
270 |
|
Beam Angle |
90° |
|
Reversible Mounting |
Yes |
|
CRI |
90 |
|
Illumination Area |
5sqm-10sqm |
|
Support Dimmer |
No |
|
IP Rating |
IP65 |
|
Voltage |
AC85-265V |
|
Body Dimensions |
16.4cm width * 6cm height * 6cm depth |
|
Weight |
394g |
|
Assembly Required |
No |
|
CE & ROHS Certified |
Yes |
Essential steps required when installing an outdoor wall light
All of our outdoor wall lights are waterproof by design. To ensure that any outdoor fixture remains waterproof once installed, proper installation must be practiced, so it is important to show these additional installation steps to your installer. If the fixture is to be installed indoors, these additional steps are not required.
Firstly, depending on the design, if the fixture comes with a rubber ring (or gasket), it is important that this ring is installed and installed correctly as this prevents any rain water flowing on your wall from entering the fixture at the edge of the back-plate of your fixture.
Finally, once installation is complete, it is important to apply sealer at the top of the fixture between the wall and the fixture. This prevents any water from seeping either into the fixture from the hole where the cables are inserted or into your electrical system from the hole in the wall where the cables are protruding.
